RAB 6" 10W 3000K-5000K LED Disc with Occupancy Sensor

Product Description

RAB 6" 10 watt selectable color temperature (3000K/4000K/5000K) round disk LED flush mount light fixture with an integrated passive infrared (PIR) sensor and white finish.



Product Features

New Construction or Retrofit Applications

Dimmable

Compatible with TRIAC dimming systems.

Wet Location Rated

Suitable for wet locations.

90 CRI

Produces rich and vibrant colors.

Installation

Installs on standard junction boxes.



Specifications

Fixture Type	Disk Light
Fixture Shape	Round
Technology	LED
Occupancy Sensor	Yes (Passive Infrared Sensor - 30s timeout)
Sensor	PIR Sensor
Material	Thermoplastic
Finish	White
Lens Finish	Frosted
Trim	Smooth Trim
Mounting	Surface and recessed mount
Size	4"
Watts	10W
Lumens	600 Lumens
Efficacy	60 Lm/W
Color Temp	Adjustable 3000K / 4000K / 5000K
Color Accuracy	90 CRI
CRI R9	R9 greater than or equal to 50 (High color performance)
Diameter	6-1/8"
Height	1-1/2"
Weight	0.4 lbs
Input Voltage	120V AC
Operating Frequency	60 Hz
Driver	Type: Constant Current 120V: 0.10A
Dimming Driver	TRIAC compatible dimmer
Power Factor	≥0.9
THD	≤20%
Flicker	≤30%
Operating Temperature	-4 to 104°F -20 to 40°C
L70 Lifespan	50,000 Hours LED lifespan based on IES LM-70 results
Dimmable	Yes - TRIAC
Wet Location Rated	Yes
For Use Indoors	Yes
For Use Outdoors	Yes
Energy Star Approved	Energy Star Version 2.2 Certified Energy Star ID: 2389599
UL Listed	Yes
UL Classified	Yes
NEC Compliant	Suitable for use in closets
Warranty	5 Year
Country of Origin	Cambodia
Trade Agreements Act Compliant	Yes
UPC	192552013550

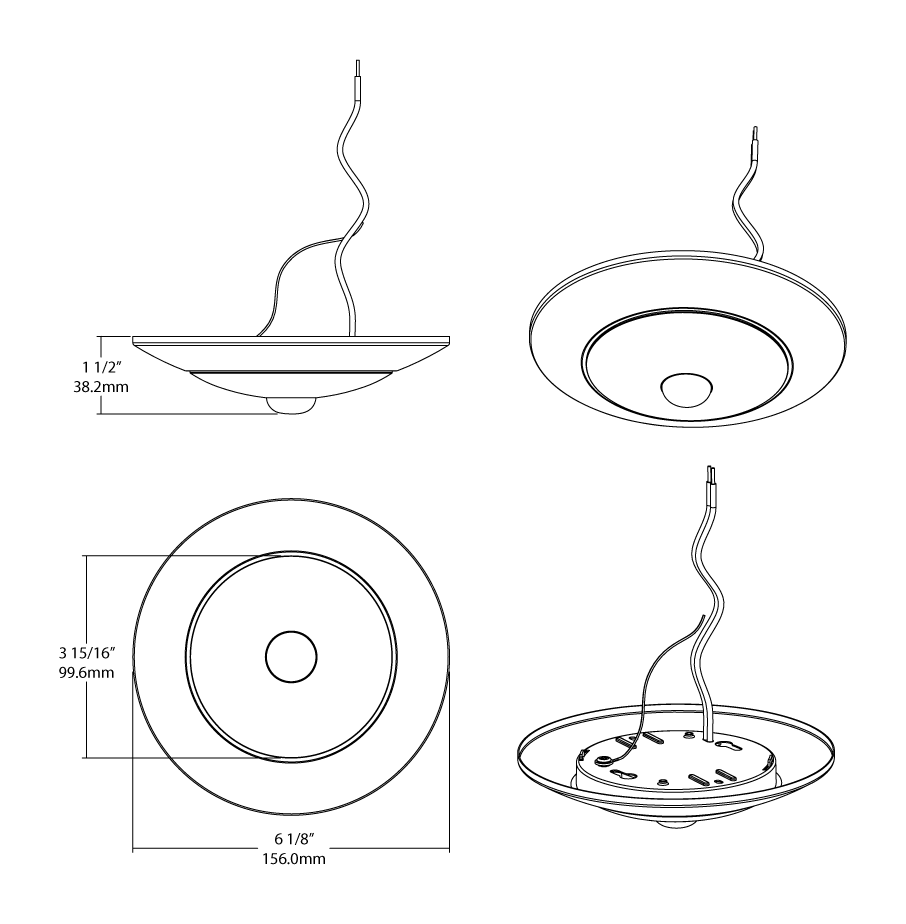

Dimensions

Spec Sheet: DSKFA-4R109CCT120WS/PIR Spec Sheet

Instructions: Installation Instructions
