20 Watts
1,500 Lumens
2700K/3000K/3500K
4000K/5000K
90 CRI
Wet Locations
Dimmable
(0-10V Dimming Only)
120° Beam
Operating Temp
-4°F to 104°F
120-277V AC
Occupancy Sensor
5 Year Warranty
Product Description

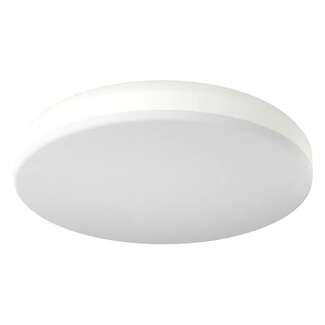

Rab white CURV 14" 20 watt selectable color temperature LED flush mount fixture with an occupancy sensor.
Product Features
Selectable Color Temperature
"Set and forget" color temperature switch.
Wet Location Rated
Suitable for wet locations.
Multiple Mounting Options
Surface mount to ceiling or wall.
90 CRI
Produces rich and vibrant colors.
Specifications
| Fixture Type | Surface & Flush Mounts |
| Fixture Shape | Round |
| Technology | LED |
| Occupancy Sensor | Yes - Microwave Sensor |
| Material | Plastic |
| Finish | White |
| Trim | Smooth Trim |
| Mounting | Surface mount |
| Size | 14" |
| Watts | 20W |
| Lumens | 1,500 Lumens |
| Efficacy | 75 Lm/W |
| Color Temp |
Adjustable 2700K / 3000K / 3500K / 4000K / 5000K |
| Color Accuracy | 90 CRI |
| CRI R9 |
R9 greater than or equal to 50 (High color performance) |
| Beam Angle | 120° |
| Height | 3-5/16" |
| Diameter | 14" |
| Weight | 2.6 lbs |
| Input Voltage | 120-277V AC |
| Operating Frequency | 50/60 Hz |
| Driver |
Type:
Constant Current
120V:
0.19A
208V:
0.10A
240V:
0.01A
277V:
0.08A
|
| Power Factor | ≥0.9 |
| THD | ≤20% |
| Flicker | ≤30% |
| Operating Temperature |
-4 to 104°F -20 to 40°C |
| L70 Lifespan |
50,000 Hours LED lifespan based on IES LM-70 results |
| Dimmable | Yes (0-10V Dimming Only) |
| Wet Location Rated | Yes |
| Energy Star Approved |
Energy Star Version 2.2 Certified Energy Star ID: 2389558 |
| UL Listed |
Yes Suitable for wet locations |
| Warranty | 5 Year |
| Country of Origin | Cambodia |
| Trade Agreements Act Compliant | Yes |
| UPC | 192552013291 |

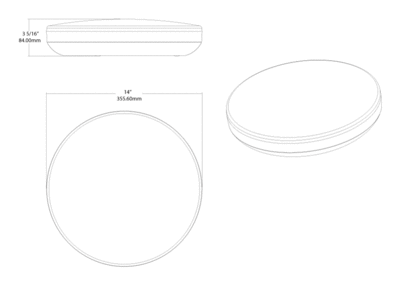

Dimensions
Spec Sheet:
CRVFAS-14R-20-9CCT-UNV-W/MVS Spec Sheet
Instructions:
Installation Instructions
