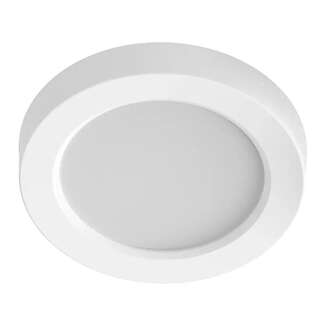

RAB SUMO 7" 12W 2700K-5000K Dimmable Round LED Surface Mount Fixture

Product Description

RAB SUMO 7" 12 watt selectable color temperature (2700K/3000K/3500K/4000K/5000K) LED round surface mount fixture with 0-10V dimming and a white finish.



Product Features

Selectable Color Temperature

Select from 5 field-adjustable color temperatures 2700K, 3000K, 3500K, 4000K, or 5000K.

Wet Location Rated

Suitable for wet locations.

Multiple Mounting Options

Surface or Recessed mounting options.
Mounting kit for recessed housing sold separately.

90 CRI

Produces rich and vibrant colors.



Specifications

Fixture Type	Surface & Flush Mounts
Fixture Shape	Round
Technology	LED
Material	Plastic
Finish	White
Trim	Smooth Trim
Mounting	Surface and recessed mount
Watts	12W
Lumens	950 Lumens
Efficacy	79.2 Lm/W
Color Temp	Adjustable 2700K / 3000K / 3500K / 4000K / 5000K
Color Accuracy	90 CRI
CRI R9	R9 greater than or equal to 50 (High color performance)
Diameter	7"
Height	1-5/16"
Beam Angle	110°
Weight	0.8 lbs
Input Voltage	120-277V AC
Operating Frequency	50/60 Hz
Driver	Type: Constant Current 120V: 0.11A 208V: 0.06A 240V: 0.05A 277V: 0.05A
Dimming Driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Power Factor	≥0.9
THD	≤20%
Flicker	≤30%
Operating Temperature	-4 to 104°F -20 to 40°C
L70 Lifespan	50,000 Hours LED lifespan based on IES LM-70 results
Dimmable	Yes - 0-10V See Dimmer Compatibility List
Wet Location Rated	Yes
Energy Star Approved	Energy Star Version 2.2 Certified Energy Star ID: 2389553
UL Listed	Yes Suitable for wet locations
California Status	Lawful for sale in California
California Title 24	Yes
Warranty	5 Year
Country of Origin	Cambodia
Trade Agreements Act Compliant	Yes
UPC	192552013215

Dimensions

Spec Sheet: SUMOFA-7R-12-95CCT-UNV-W Spec Sheet

Instructions: Installation Instructions
