RAB 9" 16W 2700K-5000K LED Surface Mount Fixture

Product Description

Rab SUMO 9" 16 watt selectable color temperature (2700K/3000K/3500K/4000K/5000K) dimmable round edge-lit LED surface mount fixture with a white finish.



Product Features

Selectable Color Temperature

Select from 5 field-adjustable color temperatures 2700K, 3000K, 3500K, 4000K, or 5000K.

Dimmable

Compatible with triac dimming systems.

Wet Location Rated

Suitable for wet locations.

Multiple Mounting Options

Surface or Recessed mounting options.
Mounting kit for recessed housing sold separately.

90 CRI

Produces rich and vibrant colors.



Specifications

Fixture Type	Surface & Flush Mounts
Fixture Shape	Round
Technology	LED
Material	Plastic
Finish	White
Trim	Smooth Trim
Mounting	Surface and recessed mount
Watts	16W
Lumens	1,300 Lumens
Efficacy	81.3 Lm/W
Color Temp	Adjustable 2700K / 3000K / 3500K / 4000K / 5000K
Color Accuracy	90 CRI
CRI R9	R9 greater than or equal to 50 (High color performance)
Diameter	9"
Height	1-5/16"
Beam Angle	110°
Weight	1.1 lbs
Input Voltage	120-277V AC
Operating Frequency	50/60 Hz
Driver	Type: Constant Current 120V: 0.15A 208V: 0.08A 240V: 0.07A 277V: 0.07A
Dimming Driver	TRIAC Compatible Dimming as low as 10%.
Power Factor	≥0.9
THD	≤20%
Flicker	≤30%
Operating Temperature	-4 to 104°F -20 to 40°C
L70 Lifespan	50,000 Hours LED lifespan based on IES LM-70 results
Dimmable	Yes - TRIAC See Dimmer Compatibility List
Wet Location Rated	Yes
Energy Star Approved	Energy Star Version 2.2 Certified Energy Star ID: 2389846
UL Listed	Yes Suitable for wet locations
California Status	Lawful for sale in California
California Title 24	Yes
Warranty	5 Year
Country of Origin	Cambodia
Trade Agreements Act Compliant	Yes
UPC	192552013208

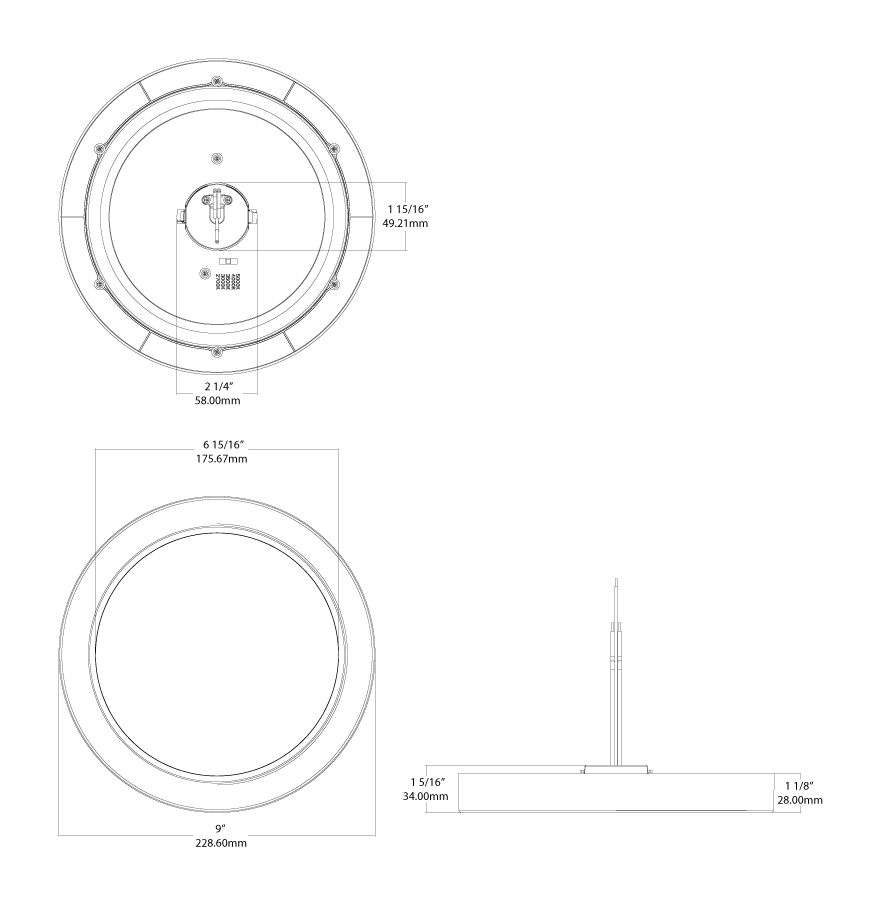

Dimensions

Spec Sheet: SUMOFA-9R-16-95CCT-UNVT-W Spec Sheet

Instructions: Installation Instructions
