100 Watts
13,534 Lumens
5000K
(Cool White)
85 CRI
Emits no UV light
Damp Locations
Dimmable
(0-10V Dimming Only)
Operating Temp
-4°F to 122°F
120-277V AC
5 Year Warranty
Product Description

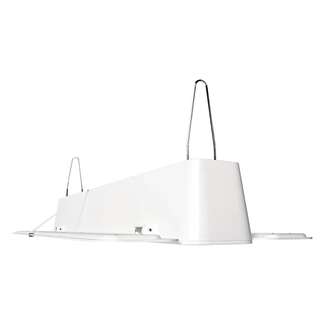

Rab L34 100 watt 5000K linear LED high bay fixture with adjustable fold-up wings that let you put light where you want it.
Product Features
Adjustable Beam Angle
The included paracords lock the adjustable fold-up wings into 5 different angles, allowing the high bay fixture to turn into an aisle lighter.
Damp Location Rated
Suitable for damp locations.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
Consistent Fixture-to-Fixture LED Color
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
Designed to meet DLC 5.1 requirements.
DLC Product Code: PTF2Z78V.
IESNA LM-79 & LM-80 Testing
This luminaire has been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Specifications
| Fixture Type | Linear High Bay |
| Technology | LED |
| Housing Material | Polycarbonate and ABS (PC/ABS) |
| Finish | White |
| Mounting | V-hooks and optional pendant mounting |
| Tilt Angle |
0° - 100.5W; 13,534 lumens 15° - 100.4W; 13,601 lumens 27° - 100.3W; 13,630 lumens 39° - 100.4W; 13,646 lumens 50° - 100.2W; 13,617 lumens |
| Equivalent | 250W Metal Halide |
| Watts | 100W |
| Lumens | 13,534 Lumens |
| Efficacy | 134.7 Lm/W |
| Color Temp |
5000K (Cool White) |
| Color Accuracy | 85 CRI |
| Length | 19-3/4" |
| Width | 8" |
| Weight | 4.8 lbs |
| Input Voltage | 120-277V AC |
| Operating Frequency | 50/60 Hz |
| Driver |
Type:
Constant Current, Class 2, Class P
120V:
0.92A
208V:
0.53A
240V:
0.46A
277V:
0.40A
|
| Dimming Driver |
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
| Power Factor |
99.7% at 120V 97.2% at 277V |
| THD |
6.48% at 120V 8.9% at 277V |
| Surge Protection | 2.5kV |
| Operating Temperature |
-4 to 122°F -20 to 50°C |
| Lifespan |
50,000 Hours (Based on IES LM-80 results and TM-21 calculations) |
| Emits No UV Light | Yes |
| Dimmable | Yes (0-10V Dimming Only) |
| Damp Location Rated | Yes |
| DLC Listed |
Yes Designed to meet DLC 5.1 requirements. DLC Product Code: PTF2Z78V |
| UL Listed |
Yes Suitable for damp locations |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| Limited Warranty |
5 Year Limited Covers light output, driver performance and paint finish. |
| Country of Origin | Cambodia |
| Trade Agreements Act Compliant | Yes |
| UPC | 192552001731 |
Dimensions
Spec Sheet:
L34-110 Spec Sheet
Instructions:
Installation Instructions
