220 Watts
30,315 Lumens
4000K
(Cool White)
80+ CRI
Damp Locations
Dimmable
(0-10V Dimming Only)
Operating Temp
-40°F to 122°F
120-277V AC
5 Year Warranty
Product Description

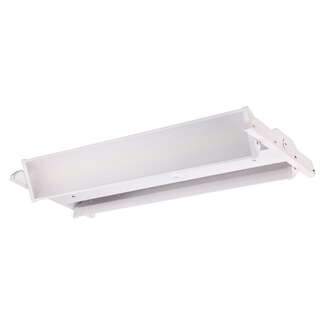

Nuvo 2 foot 220 watt 4000K adjustable linear LED hi-bay fixture with a white finish.
Product Features
Damp Location Rated
Suitable for damp locations.
Specifications
| Fixture Type | Linear Hi-Bay |
| Technology | LED |
| Material | Aluminum Alloy |
| Finish | White Finish |
| Lens Material | Polycarbonate (PC) |
| Watts | 220W |
| Lumen Output | 30,315 Lumens |
| Color Temp |
4000K (Cool White) |
| Color Accuracy | 80+ CRI |
| Beam Angle | 100° |
| Length | 26" |
| Width | 14.25" |
| Height | 1.88" |
| Weight | 10.36 lbs |
| Voltage | 120-277V AC |
| Surge Protection | 4KV |
| Operating Temperature |
-40 to 122°F -40 to 50°C |
| Average Rated Hours | 50,000 |
| Dimmable | Yes (0-10V Dimming Only) |
| Damp Location Rated | Yes |
| For Use Indoors | Yes |
| Energy Star Approved | No |
| DLC Approved |
Yes DLC ID: S-EYTO90 |
| IP Rating | IP40 |
| cULus Listed | cULus Listed - Damp Location Rated |
| IC Rated | Yes |
| IOT Enabled | No |
| FCC Compliant | Yes |
| RoHS Compliant | Yes |
| California Status | Lawful for sale in California |
| California T20 / T24 Rationale | T20 Exempt - Fixtures Not Regulated |
| California Prop 65 | Lead |
| Warranty | 5 Year Limited |
| UPC | 045923656293 |

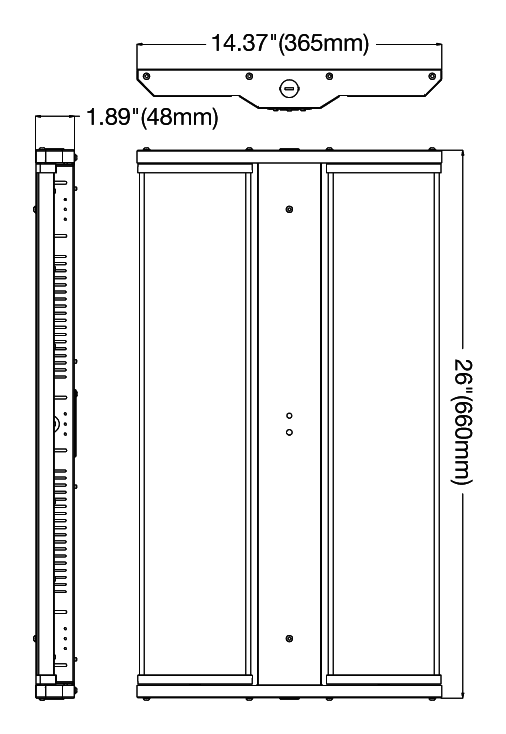

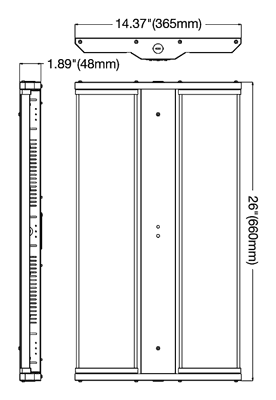

Dimensions
Spec Sheet:
65-647R1 Spec Sheet
Instructions:
65-647R1 Instructions
