104 Watts
14,773 Lumens
3000K
(Warm White)
72 CRI
Emits no UV light
Damp Locations
(Cord & Hook Mounted)
Wet Locations
(Pendant Mounted)
Dimmable
(0-10V Dimming Only)
Maximum Temp
131°F
120-277V AC
Product Description
Rab 104 watt 3000K BAYLED round high-bay fixture with a white finish and 0-10V dimming.
Product Features
Wet Location Rated
Suitable for damp locations with cord and hook.
Suitable for wet locations with 3/4" pendant stem.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
Consistent Fixture-to-Fixture LED Color
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
Designed to meet DLC 5.1 requirements.
DLC Product Code: PWZF0IRS.
IESNA LM-79 & LM-80 Testing
This luminaire has been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Thermal Management
Superior heat sinking with external Air-Flow fins.
Specifications
| Fixture Type | UFO Hi-Bay |
| Technology | LED |
| Housing Material | Precision die-cast aluminum housing and door frame |
| Finish | White |
| Reflector | Specular vacuum metallized polycarbonate |
| Gaskets | High-temperature silicone |
| Lens | Tempered glass |
| Mounting Height | 30 ft |
| Equivalent | 320 Watt Metal Halide |
| Watts | 104W |
| Lumens | 14,773 Lumens |
| Efficacy | 121.2 Lm/W |
| Color Temp |
3000K (Warm White) |
| Color Accuracy | 72 CRI |
| Width | 18" |
| Height | 9-3/8" |
| Cord Length | 3 Ft |
| Weight | 27.3 lbs |
| Input Voltage | 120-277V AC |
| Cord Rating | 600V AC |
| Operating Frequency | 50/60 Hz |
| Driver |
Type:
Constant Current, Class 2, 800mA, 100-277VAC
120V:
1.03A
208V:
0.65A
240V:
0.56A
277V:
0.49A
|
| Dimming Driver |
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
| Power Factor |
99.3% at 120V 93.6% at 277V |
| THD |
9.8% at 120V 10.04% at 277V |
| Surge Protection | 6 kV |
| Maximum Operating Temperature | 131°F (55°C) |
| Lifespan |
100,000 Hours (Based on IES LM-80 results and TM-21 calculations) |
| Emits No UV Light | Yes |
| Dimmable | Yes (0-10V Dimming Only) |
| Damp Location Rated | Yes |
| Wet Location Rated | Yes |
| DLC Listed |
Yes Designed to meet DLC 5.1 requirements. DLC Product Code: PWZF0IRS |
| UL Listed |
Yes Suitable for damp locations with cord and hook. Suitable for wet locations with 3/4" pendant stem. |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| UPC | 019813250328 |

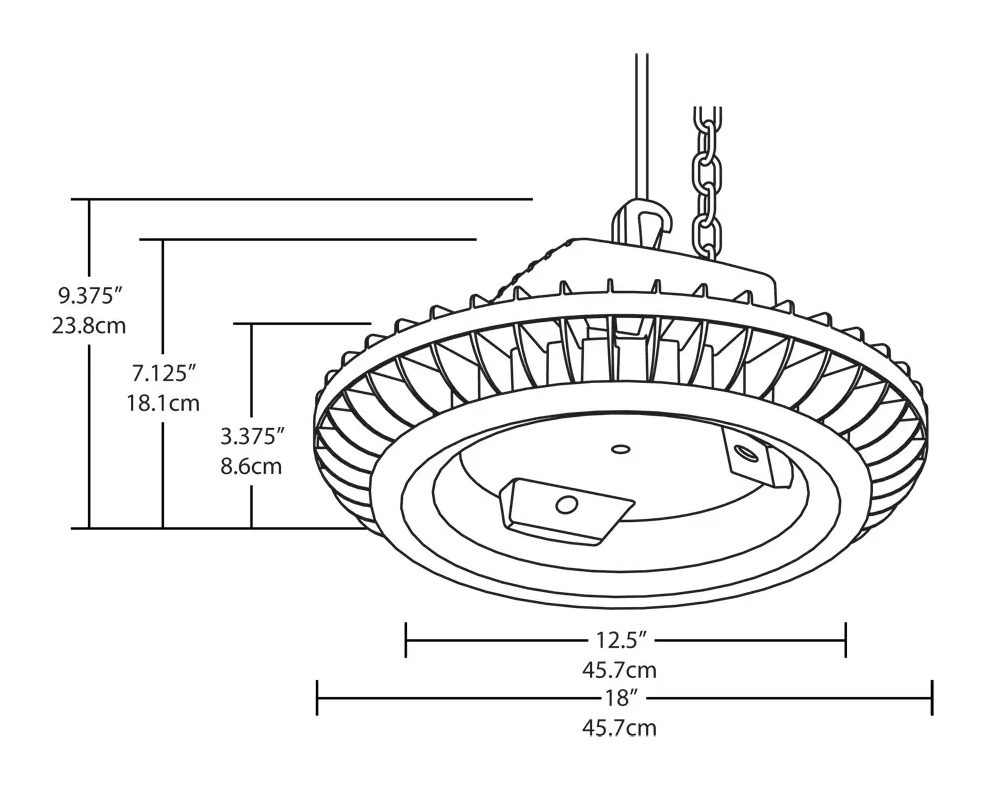

Dimensions
Spec Sheet:
BAYLED104YW/D10 Spec Sheet
Instructions:
Installation Instructions
