200 Watts
28,200 Lumens
4000K
(Cool White)
80 CRI
Wet Locations
IP65 Rated
Wet Locations
Dimmable
(0-10V Dimming Only)
Operating Temp
-40°F to 113°F
277-480V AC
5 Year Warranty
Product Description

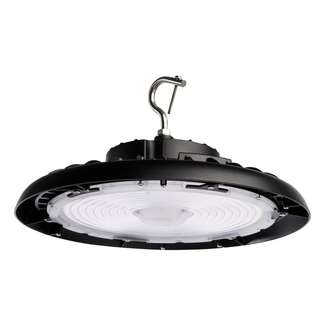

Nuvo 200 watt 4000K black UFO LED high bay fixture.
Product Features
Wet Location Rated
Suitable for wet locations.
Specifications
| Fixture Type | UFO Hi-Bay |
| Technology | LED |
| Photocell or Sensor | Optional Add-On |
| Sensor | Integrated Sensor Port |
| Material | Die Cast Aluminum |
| Finish | Black |
| Lens Material | Polycarbonate (PC) |
| Includes |
Locking Hanging Hook 6 Foot Whip |
| Installation Notes | Mounting Height: Up to 30 feet |
| Watts | 200W |
| Lumen Output | 28,200 Lumens |
| Color Temp |
4000K (Cool White) |
| Color Accuracy | 80 CRI |
| Beam Angle | 90° |
| Width | 13.39" |
| Height | 8.11" |
| Cord Length | 6 Ft |
| Weight | 10.11 lbs |
| Voltage | 277-480V AC |
| Surge Protection | 6KV |
| Operating Temperature |
-40 to 113°F -40 to 45°C |
| Average Rated Hours | 50,000 |
| Dimmable | Yes (0-10V Dimming Only) |
| Wet Location Rated | Yes |
| For Use Indoors | Yes |
| DLC Approved |
Yes DLC ID: S-XVEN4G |
| NSF Approved | Yes |
| IP65 Rating | Yes |
| cULus Listed | cULus Listed - Wet Location Rated |
| FCC Compliant | Yes |
| RoHS Compliant | Yes |
| California Prop 65 | Lead |
| Warranty | 5 Year Limited |
| UPC | 045923648175 |
Spec Sheet:
65-805R2 Spec Sheet
