Operating Temp
-31°F to 122°F
Occupancy Sensor
(Passive Infrared)
5 Year Warranty
Product Description

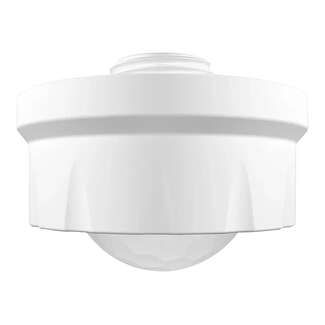

RAB passive infrared occupancy sensor kit for use with H17, H17XL, & RBAY17 LED high-bay fixtures.
Specifications
| Compatibility | H17, H17 XL, RBAY17 |
| Finish | White |
| Daylight | 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable |
| Sensor Detection Angle | <120° Fresnel Lens |
| Detection Distance | Radius 9.84-19.68ft(3-6m) |
| Hold Time | 5s/30s/1min/3min/5min/10min/20min/30min |
| Mounting Height | Max 39.37ft.(12m) |
| Operating Voltage | DC10.5-15V >30mA |
| Sensitivity Setting | 25%/50%/75%/100% |
| Sensor Warranty | 5-year sensor warranty |
| Standby Dimming | 10%/20%/30%/50% |
| Standby Period | 0s/10s/30s/1min/5min/10min/30min/60min/+∞ |
| Weight | 0.1 lbs |
| Sensor Operating Temperature |
-31 to 122°F -35 to 50°C |
| UPC | 192552026000 |
Spec Sheet:
PIR40 Spec Sheet
Instructions:
Installation Instructions
