RAB 20/30/40 Watt 3500K-5000K 1X4 Backlit LED Flat Panel

Product Description

RAB 1ft X 4ft selectable wattage (20/30/40 watts) and selectable color temperature (3500K/4000K/5000K) 100-277 volt backlit LED flat panel with white finish.



Product Features

Selectable Wattage

Power selection switch allows selecting between 40W/30W/20W (factory default 30W).

Selectable Color Temperature

Color selection switch allows selecting between 3500K, 4000K and 5000K.

Damp Location Rated

Suitable for damp locations.

Environmentally Friendly

Mercury and UV free. RoHS-compliant components.

Mounting

Recessed into T-grid ceiling. Surface and recessed mounting kits available for drywall ceilings.

IESNA LM-79 & LM-80 Testing

This luminaire has been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Chicago (CCEA) Plenum Compliant

Luminaire requirements used in Environmental Air Space per the electrical code specification of the city of Chicago.



Specifications

Fixture Type	Backlit Flat Panel
Installation Type	Drop ceiling installation (T-Bar Grid)
Installation Kits Available	Surface Mount Frame Kit
Technology	LED
Housing Material	Plastic Frame Galvanized Steel Back Housing
Finish	White
Lens	Frosted polystyrene
Equivalent	(2) F32T8 (2) F28T5
Watts	20 / 30 / 40W
Lumens	2,137 - 4,089 Lumens
Efficacy	113.2 - 127.8 Lm/W
Color Temp	Adjustable 3500K / 4000K / 5000K
Color Accuracy	82-84 CRI
Length	47-3/4"
Width	11-7/8"
Height	1-3/8"
Weight	5.6 lbs
Input Voltage	120-277V AC
Operating Frequency	50/60 Hz
Driver	Type: Constant Current, Class 2 20W: 120V: 0.17A, 208V: 0.10A, 240V: 0.09A, 277V: 0.08A 30W: 120V: 0.25A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A 40W: 120V: 0.34A, 208V: 0.20A, 240V: 0.17A, 277V: 0.15A
Dimming Driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Power Factor	99.54% at 120V 94.8% at 277V
THD	6.87% at 120V 9.66% at 277V
Operating Temperature	-4 to 104°F -20 to 40°C
Lifespan	50,000 Hours (Based on IES LM-80 results and TM-21 calculations)
Emits No UV Light	Yes
Dimmable	Yes (0-10V Dimming Only)
Damp Location Rated	Yes
UL Listed	Yes Suitable for damp locations
IC Rated	Suitable for direct contact with insulation
Chicago CCEA Plenum Compliant	Yes
RoHS Compliant	Yes
Mercury Free	Yes
Limited Warranty	5 Year Limited Covers light output, driver performance and paint finish.
Country of Origin	Cambodia
Trade Agreements Act Compliant	Yes
UPC	192552014267

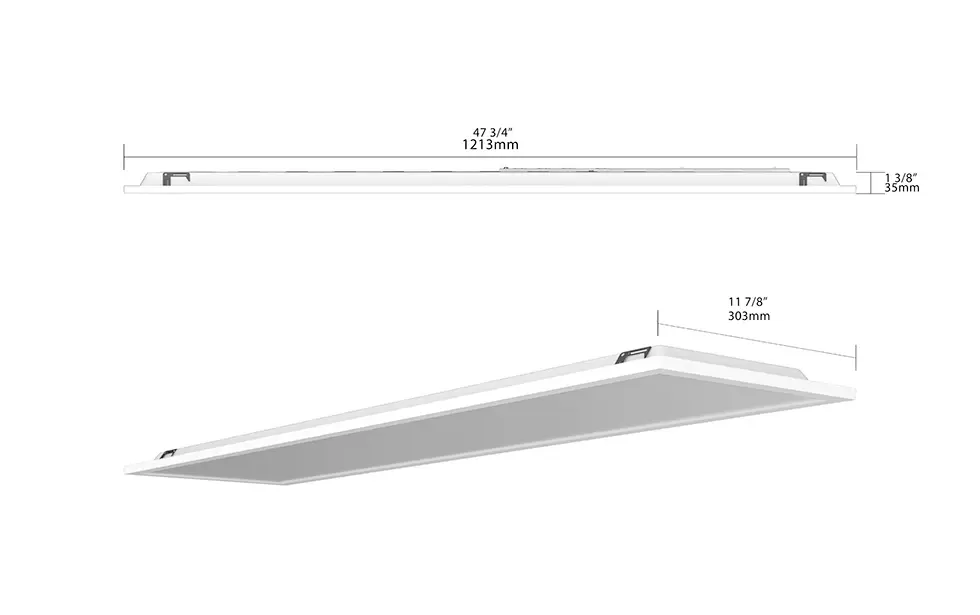

Dimensions

Spec Sheet: T34FA-1X4 Spec Sheet

Instructions: Installation Instructions
