17 Watts
2,224 Lumens
4000K
(Neutral White)
82 CRI
Emits no UV light
Damp Locations
Dimmable
(0-10V Dimming Only)
Operating Temp
-22°F to 122°F
120-277V AC
5 Year Warranty
Product Description

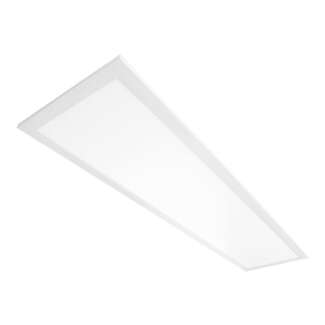

RAB 17 watts 4000K edge-lit dimmable white 1X4 recessed LED panel.
Product Features
Smooth Diffused Light
Frosted polystyrene lens produces even and diffuse ambient illumination, ideal for spaces where glare-free lighting is required.
Dimmable
0-10V dimming driver standard.
Damp Location Rated
Suitable for damp locations.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
T-bar Clips
Standard integral T-bar clips secure the fixture to T-bars and prevent T-system separation.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: PEI6VYVH.
IESNA LM-79 & LM-80 Testing
This luminaire has been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
CCEA Compliant
Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City of Chicago.
Specifications
| Housing Material | Lightweight aluminum housing, steel pan and junction box |
| Finish | White |
| Lens | Frosted Polystyrene |
| Mounting | Recessed ceiling |
| Equivalent | (1)F32T8 or (1)F28T5 |
| Watts | 17W |
| Lumens | 2,224 Lumens |
| Efficacy | 111.2 lm/W |
| Color Temp |
4000K (Neutral White) |
| Color Accuracy | 82 CRI |
| Weight | 7.6 lbs |
| Input Voltage | 120-277V AC |
| Operating Frequency | 50/60 Hz |
| Driver |
Type:
Constant Current, Class 2
120V:
0.14A
208V:
0.10A
240V:
0.08A
277V:
0.07A
|
| THD |
9.71% at 120V 15.12% at 277V |
| Operating Temperature |
-22 to 122°F -30 to 50°C |
| Lifespan |
60,000 Hours (Based on IES LM-80 results and TM-21 calculations) |
| Emits No UV Light | Yes |
| Dimmable | Yes (0-10V Dimming Only) |
| Damp Location Rated | Yes |
| DLC Listed |
Yes DLC Product Code: PEI6VYVH |
| UL Listed |
Yes Suitable for damp locations |
| IC Rated | Suitable for insulated ceilings |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| Warranty | 5 Year |
| Country of Origin | Cambodia |
| Trade Agreements Act Compliant | Yes |
| UPC | 019813667294 |
Dimensions
Spec Sheet:
EZPAN1X4-17N/D10 Spec Sheet
Instructions:
Installation Instructions
