40 Watts
4,518 Lumens
3000K
(Warm White)
80 CRI
Emits no UV light
Damp Locations
Dimmable
(0-10V Dimming Only)
Operating Temp
-22°F to 122°F
120-277V AC
5 Year Warranty
Product Description

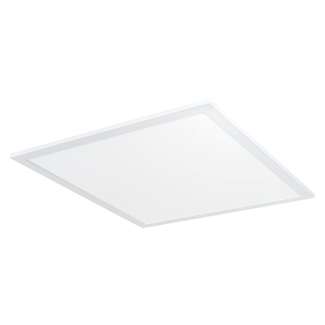

RAB 40 watts 3000K edge-lit dimmable white 2X2 recessed LED panel.
Product Features
Smooth Diffused Light
Frosted polystyrene lens produces even and diffuse ambient illumination, ideal for spaces where glare-free lighting is required.
Dimmable
0-10V dimming driver standard.
Damp Location Rated
Suitable for damp locations.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
T-bar Clips
Standard integral T-bar clips secure the fixture to T-bars and prevent T-system separation.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: PDYKU7HJ.
IESNA LM-79 & LM-80 Testing
This luminaire has been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
CCEA Compliant
Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City of Chicago.
80 CRI
Ideal for general lighting applications.
Specifications
| Housing Material | Lightweight aluminum housing, steel pan and junction box |
| Finish | White |
| Lens | Frosted Polystyrene |
| Mounting | Recessed ceiling |
| Equivalent | (4) F17T8 / F24T5 or (4) PL_L40 |
| Watts | 40W |
| Lumens | 4,518 Lumens |
| Efficacy | 113 lm/W |
| Color Temp |
3000K (Warm White) |
| Color Accuracy | 80 CRI |
| Length | 23.74" |
| Width | 23.74" |
| Height | 1.63" |
| Weight | 8.4 lbs |
| Input Voltage | 120-277V AC |
| Operating Frequency | 50/60 Hz |
| Driver |
Type:
Constant Current, Class 2
120V:
0.33A
208V:
0.22A
240V:
0.19A
277V:
0.16A
|
| Dimming Driver |
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
| Power Factor |
99.0% at 120V 95.2% at 277V |
| THD |
8.88% at 120V 13.55% at 277V |
| Operating Temperature |
-22 to 122°F -30 to 50°C |
| Lifespan |
60,000 Hours (Based on IES LM-80 results and TM-21 calculations) |
| Emits No UV Light | Yes |
| Dimmable | Yes (0-10V Dimming Only) |
| Damp Location Rated | Yes |
| DLC Listed |
Yes DLC Product Code: PDYKU7HJ |
| UL Listed |
Yes Suitable for damp locations |
| IC Rated | Suitable for insulated ceilings |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| Warranty | 5 Year |
| Country of Origin | Cambodia |
| Trade Agreements Act Compliant | Yes |
| UPC | 019813491585 |
Dimensions
Spec Sheet:
EZPAN2X2-40Y/D10 Spec Sheet
Instructions:
Installation Instructions
