30 / 40 / 50 Watts
3,300 - 5,750 Lumens
3500K/4000K/5000K
80+ CRI
Damp Locations
Dimmable
(0-10V Dimming Only)
Operating Temp
1°F to 113°F
100-277V AC
5 Year Warranty
Product Description

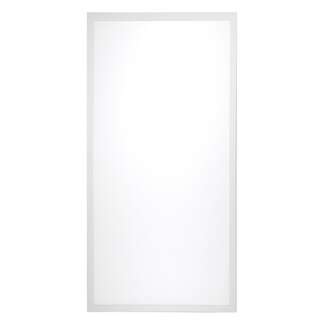

Nuvo 2ft X 4ft selectable wattage (30/40/50 Watts) and selectable color temperature 100-277 volt backlit LED flat panel with emergency battery backup and white finish.
Product Features
Damp Location Rated
Suitable for damp locations.
Specifications
| Fixture Type | Backlit Flat Panel |
| Installation Type |
Drop ceiling installation (T-Bar Grid) |
| Installation Kits Available |
Surface Mount Frame Kit Suspension Kit |
| Technology | LED |
| Photocell | No Photocell |
| Material | Aluminum / Steel |
| Finish | White |
| Lens Material | Poly methyl methacrylate (PMMA) |
| Additional Information | Driver Specs - VDC38-48V; 630/810/1030mA |
| Watts | 30 / 40 / 50W |
| Lumen Output | 3,300 - 5,750 Lumens |
| Color Temp |
Adjustable 3500K / 4000K / 5000K |
| Color Accuracy | 80+ CRI |
| Beam Angle | 120° |
| Length | 47.72" |
| Width | 23.75" |
| Height | 3.06" |
| Weight | 12.13 lbs |
| Voltage | 100-277V AC |
| Flicker Free | Yes |
| Surge Protection | 2KV |
| Operating Temperature |
1 to 113°F -17 to 45°C |
| Average Rated Hours | 50,000 |
| Dimmable | Yes (0-10V Dimming Only) |
| Damp Location Rated | Yes |
| For Use Indoors | Yes |
| Energy Star Approved | No |
| DLC Approved |
Yes DLC ID: S-U7LTOR |
| NSF Approved | Yes |
| IP Rating | IP20 |
| cETLus Listed | cETLus - Damp Location Rated |
| IC Rated | Yes |
| Air Tight Rated | No |
| IOT Enabled | No |
| FCC Compliant | Yes |
| RoHS Compliant | Yes |
| California Status | Lawful for sale in California |
| California T20 / T24 Rationale | T20 Exempt - Fixtures Not Regulated |
| California Prop 65 | Lead |
| Warranty | 5 Year Limited |
| UPC | 045923657184 |
Spec Sheet:
65-576R1 Spec Sheet
Instructions:
65-576R1 Instructions
