RAB 2ft 10/14/19W 3500K-5000K LED Strip Fixture with Battery

Product Description

RAB 2 foot selectable wattage (10/14/19 Watt) and selectable color temperature (3500K/4000K/5000K) linear LED strip light fixture with battery backup.



Product Features

Battery Backup

Battery backup will operate the fixture for 90 minutes if power fails when wired for 120-277V AC.

Selectable Wattage

Power selection switch allows selecting between 19W/14W/10W (factory default 19W).

Selectable Color Temperature

Color selection switch allows selecting between 5000K, 4000K and 3500K (factory default 4000K).

Dimmable

0-10V dimming driver standard.

Damp Location Rated

Suitable for damp locations.

Environmentally Friendly

Mercury and UV free. RoHS-compliant components.

Consistent Fixture-to-Fixture LED Color

4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.

Mounting

Comes standard with surface mounting hardware.
V-Hooks and chain mounting kit is sold separately (SR VHOOK KIT).
Fixture join kit for mounting in continuous-runs is sold separately (SR JOIN KIT).

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified products list and is eligible for rebates from DLC Member Utilities.
Designed to meet DLC 5.1 requirements.
DLC product code: S-BY8SM3.

IESNA LM-79 & LM-80 Testing

This luminaire has been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.



Specifications

Fixture Type	LED Strip Light
Technology	LED
Housing Material	Steel
Finish	White
Accessories	Suspended Mounting Kit: SR VHOOK KIT Fixture Join Kit: SR JOIN KIT
Lens	Polycarbonate lens
Equivalent	19W: (1) F32T8 14W: (1) F32T8 10W: (1) F32T8
Watts	10 / 14 / 19W
Lumens	1,552 - 2,998 Lumens
Efficacy	140.6 - 160.6 Lm/W
Color Temp	Adjustable 3500K / 4000K / 5000K
Color Accuracy	83-85 CRI
Length	24"
Width	2-3/8"
Height	2-13/16"
Weight	2.5 lbs
Voltage	120-277V AC
Driver	Type: Constant Current 10W: 120V: 0.08A, 208V: 0.05A, 240V: 0.04A, 277V: 0.04A 14W: 120V: 0.12A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A 19W: 120V: 0.16A, 208V: 0.09A, 240V: 0.08A, 277V: 0.07A
Dimming Driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Power Factor	99.8% at 120V 98.22% at 277V
THD	6.33% at 120V 12.02% at 277V
Surge Protection	L-N 1KV, L/N-G 2KV
Battery Backup	Yes 90 Minutes when wired for 120-277V AC
Battery Backup Light Loss Factor	19W: 0.223 14W: 0.276 10W: 0.42
Operating Temperature	32 to 122°F 0 to 50°C
Lifespan	50,000 Hours (Based on IES LM-80 results and TM-21 calculations)
Emits No UV Light	Yes
Dimmable	Yes (0-10V Dimming Only)
Damp Location Rated	Yes
DLC Listed	Yes Designed to meet DLC 5.1 requirements. DLC Product Code: S-BY8SM3
UL Listed	Yes Suitable for damp locations
RoHS Compliant	Yes
Mercury Free	Yes
Limited Warranty	5 Year Limited Covers light output, driver performance and paint finish.
UPC	192552028752

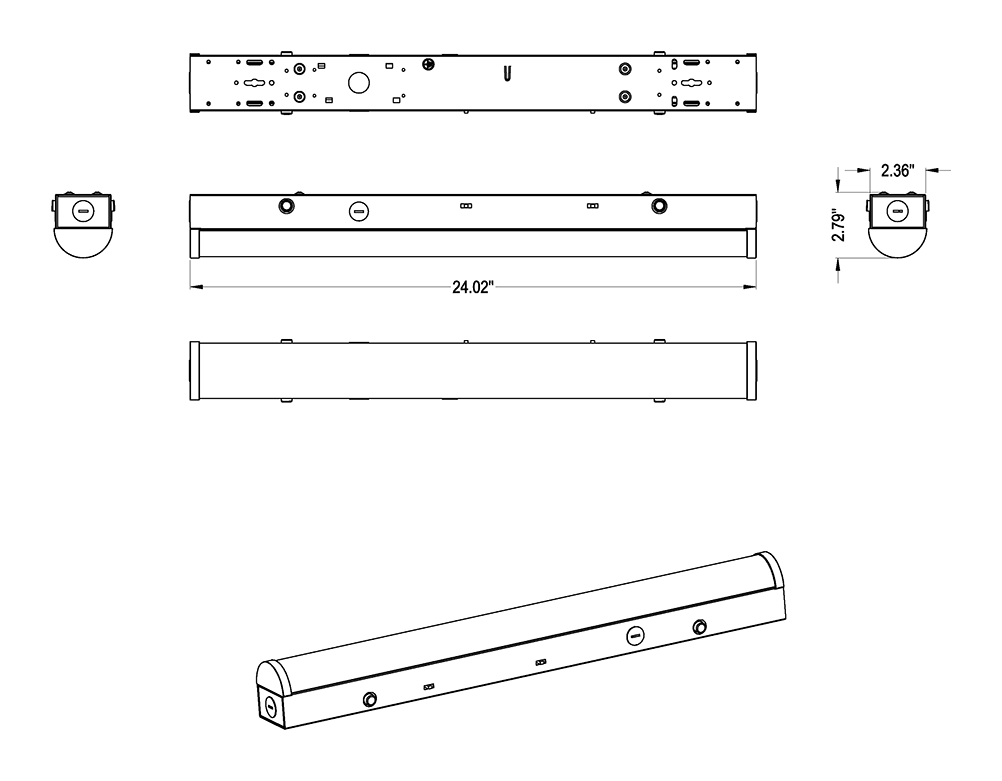

Dimensions

Spec Sheet: SR2/E Spec Sheet

Instructions: Installation Instructions
