RAB 8ft 40/50/60 Watt 3500K/4000K/5000K LED Strip Fixture

Product Description

RAB 8 foot selectable wattage (40/50/60 Watt) and selectable color temperature (3500K/4000K/5000K) linear LED strip light fixture.



Product Features

Selectable Wattage

Power selection switch allows selecting between 60W/50W/40W (factory default 60W).

Selectable Color Temperature

Color selection switch allows selecting between 5000K, 4000K and 3500K (factory default 4000K).

Dimmable

0-10V dimming driver standard.

Damp Location Rated

Suitable for damp locations.

Environmentally Friendly

Mercury and UV free. RoHS-compliant components.

Consistent Fixture-to-Fixture LED Color

4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.

Mounting

Comes standard with surface mounting hardware.
V-Hooks and chain mounting kit is sold separately (SR VHOOK KIT).
Fixture join kit for mounting in continuous-runs is sold separately (SR JOIN KIT).

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified products list and is eligible for rebates from DLC Member Utilities.
Designed to meet DLC 5.1 requirements.
DLC product code: S-FP3EWO.

IESNA LM-79 & LM-80 Testing

This luminaire has been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.



Specifications

Fixture Type	LED Strip Light
Technology	LED
Housing Material	Steel
Finish	White
Accessories	Suspended Mounting Kit: SR VHOOK KIT Fixture Join Kit: SR JOIN KIT
Lens	Polycarbonate lens
Equivalent	60W: (4) F32T8 50W: (3) F32T8 40W: (3) F32T8
Watts	40 / 50 / 60W
Lumens	5,854 - 8,986 Lumens
Efficacy	140.2 - 158.5 Lm/W
Color Temp	Adjustable 3500K / 4000K / 5000K
Color Accuracy	84-85 CRI
Length	94-1/2"
Width	2-3/8"
Height	2-13/16"
Weight	8.5 lbs
Voltage	120-277V AC
Driver	Type: Constant Current 40W: 120V: 0.33A, 208V: 0.19A, 240V: 0.17A, 277V: 0.14A 50W: 120V: 0.41A, 208V: 0.24A, 240V: 0.21A, 277V: 0.18A 60W: 120V: 0.50A, 208V: 0.29A, 240V: 0.25A, 277V: 0.22A
Dimming Driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Power Factor	99.38% at 120V 94.72% at 277V
THD	7.52% at 120V 7.96% at 277V
Surge Protection	L-N 1KV, L/N-G 2KV
Operating Temperature	32 to 122°F 0 to 50°C
Lifespan	50,000 Hours (Based on IES LM-80 results and TM-21 calculations)
Emits No UV Light	Yes
Dimmable	Yes (0-10V Dimming Only)
Damp Location Rated	Yes
DLC Listed	Yes Designed to meet DLC 5.1 requirements. DLC Product Code: S-FP3EWO
UL Listed	Yes Suitable for damp locations
RoHS Compliant	Yes
Mercury Free	Yes
Limited Warranty	5 Year Limited Covers light output, driver performance and paint finish.
UPC	192552026369

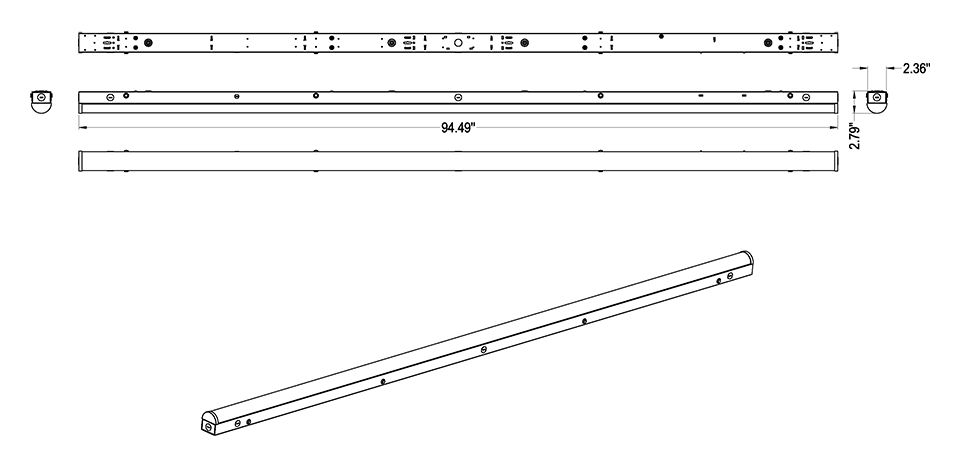

Dimensions

Spec Sheet: SR8 Spec Sheet

Instructions: Installation Instructions
