11 Watts
922 Lumens
2700K/3000K/3500K
4000K/5000K
92 CRI
Emits no UV light
Wet Locations
Dimmable
(TRIAC Compatible)
95° Beam
Operating Temp
-22°F to 104°F
Medium Base
120V AC
5 Year Warranty
Product Description
Rab 6" Gimbal 10.5 watt color temperature adjustable recessed retrofit LED downlight with E26 adapter and baffle trim.
- Durable metal construction: dent and scratch resistant
- UL wet location rated
- Compatible with most standard recessed housings
- 5 Color temperature selectable 2700K, 3000K, 3500K, 4000K, & 5000K
Product Features
Socket Adapter Included
Medium Base (E26) Socket adapter included.
Dimmable
Compatible with most common dimmer models. Dimmable down to 5%.
Wet Location Rated
Suitable for wet locations.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
Flicker Free
Silent and flicker free operations of less than 30%.
Specifications
| Lamp Shape | Round |
| Housing Material | Constructed from durable steel sheet metal |
| Finish | Matte White |
| Compatible | Compatible with most 5" and 6" recessed housings |
| Lens | Frosted polycarbonate diffusion lens |
| Mounting | Easy installation with friction clips (4") and torsion springs (5"/6") |
| Trim Style | Baffle Trim |
| Socket Adapter | Medium Base (E26) Socket adapter included |
| Equivalent | 75W Incandescent |
| Watts | 11W |
| Lumens | 922 Lumens |
| Efficacy | 85 lm/W |
| Color Temp | 5CCT Field Adjustable |
| Color Accuracy | 92 CRI |
| CRI R9 |
R9 greater than or equal to 50 (High color performance) |
| Beam Angle | 95° |
| Weight | 0.8 lbs |
| Input Voltage | 120V AC |
| Operating Frequency | 60 Hz |
| Driver |
Type:
Constant Current
120V:
0.09A
|
| Dimming Driver |
TRIAC Compatible Dimming as low as 5%. (See dimmer compatibility guide) |
| Power Factor | ≥0.9 |
| THD | <20% |
| THDi | Produces less than 20% THD |
| Flicker | <30% |
| Operating Temperature |
-22 to 104°F -30 to 40°C |
| Lifespan |
50,000 Hours (Based on IES LM-80 results and TM-21 calculations) |
| Emits No UV Light | Yes |
| Dimmable | Yes - TRIAC |
| Wet Location Rated | Yes |
| Energy Star Approved |
Energy Star Version 2.2 Certified Energy Star Model Number: DLR0035 Energy Star ID: 2350098 |
| UL Classified |
Yes Suitable for wet locations |
| NEC Compliant |
Suitable for use in closets. (NEC Sections 410.16 (A)(1) & 410.16 (C5)) |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| California Title 20 | Compliant LED Product |
| California Title 24 | Conforms with California Title 24 Part 6 |
| Warranty | 5 Year |
| UPC | 019813512884 |

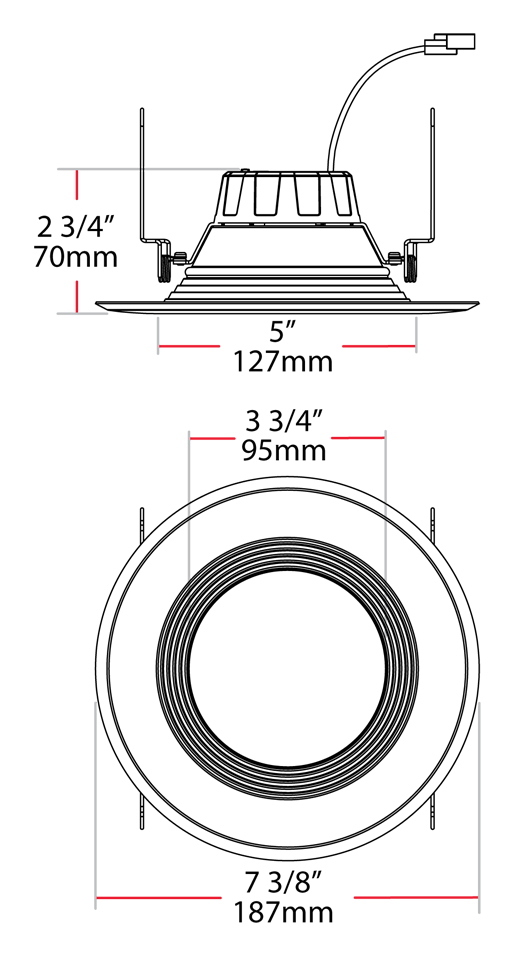

Dimensions
Spec Sheet:
R6R119FA120WB Spec Sheet
Instructions:
Installation Instructions
Compatibility:
Compatibility List
