11 Watts
1,100 Lumens
2700K/3000K/3500K
4000K/5000K
90 CRI
Wet Locations
Dimmable
(TRIAC Compatible)
Operating Temp
-4°F to 104°F
Medium Base
120V AC
5 Year Warranty
Product Description
Rab 6" 11 watt dimmable selectable color temperature (2700K/3000K/3500K/4000K/5000K) recessed downlight gimbal LED retrofit with medium base socket adapter.
Product Features
Selectable Color Temperature
Color selection switch allows selecting between 2700K, 3000K, 3500K, 4000K, & 5000K.
Compatible with Recessed Housings
Compatible with most standard recessed housings.
Dent & Scratch Resistant
Socket Adapter Included
Medium Base (E26) Socket adapter included.
Dimmable
Compatible with most common dimmer models. Dimmable down to 5%.
Wet Location Rated
Yes
Suitable for wet locations.
90 CRI
Produces rich and vibrant colors.
Powder Coating Finish
Chip, scratch, and fade-resistant polyester powder coat finish.
Specifications
| Product Type | Gimbal Recessed Downlight Retrofits |
| Fixture Shape | Round |
| Material | Plastic |
| Finish | White |
| Compatible | Compatible with most 5" and 6" recessed housings |
| Lens | Frosted polycarbonate diffusion lens |
| Trim | Smooth Trim |
| Mounting | Recessed ceiling |
| Size | 6" |
| Socket Adapter | Medium Base (E26) Socket adapter included |
| Equivalent | 75W Incandescent |
| Watts | 11W |
| Lumens | 1,100 Lumens |
| Efficacy | 100 lm/W |
| Color Temp |
Adjustable 2700K / 3000K / 3500K / 4000K / 5000K |
| Color Accuracy | 90 CRI |
| CRI R9 |
R9 greater than or equal to 50 (High color performance) |
| Width | 7-3/16" |
| Height | 2-7/8" |
| Weight | 0.7 lbs |
| Input Voltage | 120V AC |
| Operating Frequency | 60Hz |
| Driver |
Type:
Constant Current
120V:
0.11A
|
| Dimming Driver |
TRIAC Compatible Dimming as low as 10%. |
| Power Factor | ≥0.9 |
| THD | ≤20% |
| Flicker | ≤30% |
| Operating Temperature |
-4 to 104°F -20 to 40°C |
| L70 Lifespan |
50,000 Hours LED lifespan based on IES LM-70 results |
| Dimmable | Yes - TRIAC |
| Wet Location Rated | Yes |
| Energy Star Approved |
Energy Star Version 2.2 Certified Energy Star ID: 2389588 |
| UL Listed |
Yes Suitable for wet locations |
| UL Classified |
Yes Suitable for wet locations |
| Warranty | 5 Year |
| UPC | 192552013802 |

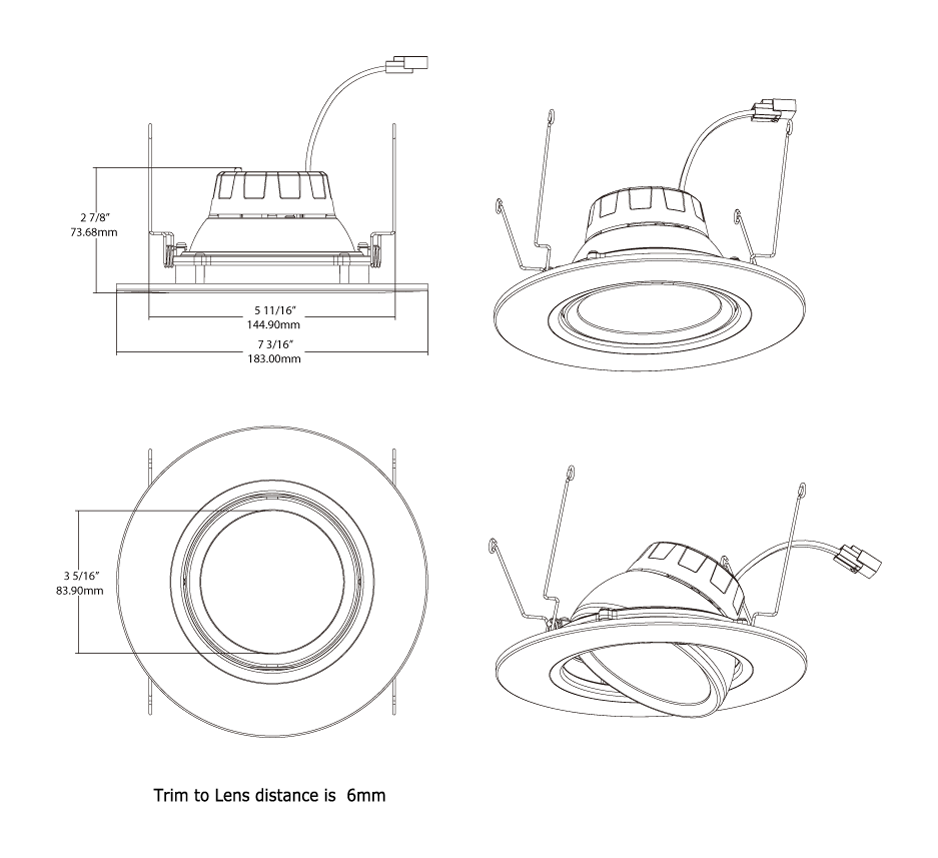

Dimensions
Spec Sheet:
RA6R119FA120WS Spec Sheet
Instructions:
Installation Instructions
Compatibility:
Downlight Housing Compatibility List
