Satco 8" 19/26/32W 2700K-5000K 80° Beam Commercial LED Downlight

Product Description

Satco 8" selectable wattage (19/26/32 watt) and selectable color temperature (2700K/3000K/3500K/4000K/5000K) commercial recessed LED downlight fixture with a 80° beam angle.



Product Features

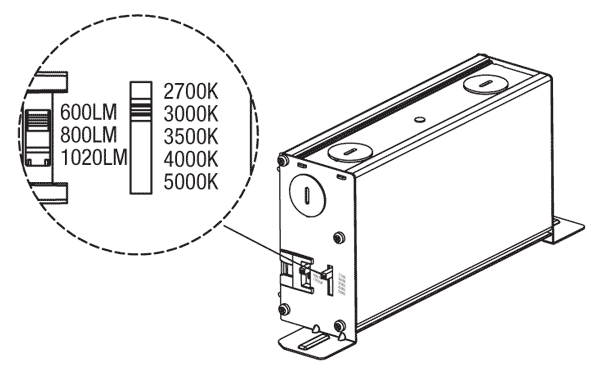

Selectable Color Temperature, Watts, & Lumens

CCT switch allows selecting between 2700K, 3000K, 3500K, 4000K, and 5000K.
Lumens switch allows selecting lumens and watts used.

Installation Options

An outboard LED driver/junction box allows for easy placement, even in the most challenging renovations.

New Construction or Retrofit Applications

The downlight mounts securely into the mounting plates, sold separately, for new construction.

Damp Location Rated

Suitable for damp locations.



Specifications

Lamp Code	32WLED/CDL/8/ADJ-CCT/80D
Recessed Can Size	8 in.
Technology	LED
Finish	White
Installation Notes	Can be installed with or without the rough-in plate (80-959)
Watts	19 / 26 / 32W
Lumen Output	1,600 / 2,000 / 2,450 Lumens
Color Temp	Adjustable 2700K / 3000K / 3500K / 4000K / 5000K
Color Accuracy	80 CRI
Beam Angle	80°
Width	9.06"
Height	5.05"
Weight	1.9 lbs
Voltage	120-277V AC
Operating Temperature	-4 to 104°F -20 to 40°C
Average Rated Hours	50,000
Dimmable	Yes (0-10V Dimming Only)
Damp Location Rated	Yes
For Use Indoors	Yes
Energy Star Approved	Yes Energy Star ID: 2353224
cETLus Listed	cETLus - Damp Location Rated
IC Rated	Yes
Air Tight Rated	No
FCC Compliant	Yes
RoHS Compliant	Yes
California Status	Lawful for sale in California
California T20 / T24 Rationale	T20 Exempt - Fixtures Not Regulated
California Prop 65	Lead
Warranty	5 Year Limited
UPC	045923118128
Suggested Dimmers	Cooper DF10P Cooper SF10P Legrand ADPD4FBL3P2W4 Leviton DS710-10Z Leviton IP710-LFZ Lutron DVSCSTV Lutron DVSTV Lutron MS-Z101 Lutron MS-Z101-V Lutron NTSTV-DV

Dimensions

Spec Sheet: S11812 Spec Sheet

Instructions: S11812 Instructions
