8 Watts
650 - 710 Lumens
2700K/3000K/3500K
4000K/5000K
90 CRI
Wet Locations
Dimmable
Operating Temp
-4°F to 104°F
Insulation Contact
Rated
Air Tight
120-277V AC
5 Year Warranty
Product Description

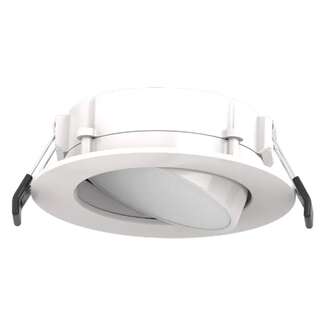

RAB 4" 8 watt 5CCT adjustable color round recessed downlight LED back-lit gimbal wafer with a smooth trim.
Product Features
Adjustable Beam Angle
Flexible 360° rotation and 25° tilt for any direction illumination.
New Construction or Retrofit Applications
This 4-inch adjustable gimbal wafer downlight has an ultra low-profile design and 5 field adjustable color temperatures making them a flexible solution for both new construction and retrofit applications.
Shallow Ceiling Compatible
Shallow baffle trim provides extremely thin depth for shallow ceiling installation.
Wet Location Rated
Suitable for wet locations.
90 CRI
Produces rich and vibrant colors.
Remote Driver / Junction Box
The remote driver box has quick connectors, knockouts, and plenty of space for daisy chain wiring or adding an emergency backup unit.
Installation
No recessed housing or j-box required.
Specifications
| Fixture Type | Recessed Downlights |
| Fixture Shape | Round |
| Technology | LED |
| Material | Plastic |
| Finish | White |
| Trim | Smooth Trim |
| Mounting | Recessed ceiling |
| Equivalent | 60W Incandescent |
| Watts | 8W |
| Lumens |
2700K: 650 Lumens 3000K: 685 Lumens 3500K: 705 Lumens 4000K: 710 Lumens 5000K: 700 Lumens |
| Efficacy |
2700K: 81 Lm/W 3000K: 86 Lm/W 3500K: 88 Lm/W 4000K: 89 Lm/W 5000K: 88 Lm/W |
| Color Temp |
Adjustable 2700K / 3000K / 3500K / 4000K / 5000K |
| Color Accuracy | 90 CRI |
| Size | 4" |
| Weight | 0.9 lbs |
| Operating Frequency | 60 Hz |
| Driver |
Type:
Constant Current
|
| Power Factor | 0.9 |
| THD | ≤20% |
| Operating Temperature |
-4 to 104°F -20 to 40°C |
| L70 Lifespan |
50,000 Hours LED lifespan based on IES LM-70 results |
| Dimmable |
Yes See Dimmer Compatibility List |
| Wet Location Rated | Yes |
| Energy Star Approved |
Energy Star Version 2.2 Certified Energy Star ID: 2395410 |
| UL Listed |
Yes Suitable for wet locations |
| IC Rated | Yes |
| Air Tight Rated | Yes |
| Warranty | 5 Year |
| Country of Origin | Cambodia |
| Trade Agreements Act Compliant | Yes |
| UPC | 192552018760 |
Dimensions
Spec Sheet:
WFRLA4R89FA120WS Spec Sheet
Instructions:
Cut Out Template
Installation Instructions
Compatibility:
Dimmer Compatibility List
Downlight Accessory Compatibility List
