RAB 12" 20 Watt 3000K Vandal-Resistant LED Canopy Light

Product Description

RAB bronze 20 watt 3000K ceiling mount vandalproof LED canopy Light fixture with drop lens.

Fits the footprint of older canopy lights.



Product Features

IP66 Rating

Ingress Protection rating of IP66 keeps dust, bugs, and water out.

Wet Location Rated

Suitable for Wet Locations. Covered Ceiling Mount Only.

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: PQ5Q3JZN.

IESNA LM-79 & LM-80 Testing

This luminaire has been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.



Specifications

Housing Material	Die-cast aluminum housing and lens frame with (4) 1/2" NPS side conduit entries and weatherproof rear wire plug and access plate
Lens	Vandal-resistant polycarbonate textured opaque for low glare drop lens
Mounting	Ceiling mount to recessed junction with knockout template or directy to ceiling surface, utilizing side conduit entry points
Equivalent	100W Metal Halide
Watts	20W
Lumens	2,890 Lumens
Efficacy	131 lm/W
Color Temp	3000K (Warm White)
Color Accuracy	84 CRI
Length	11 1/2"
Width	4 1/3"
Height	11 1/2"
Weight	10.8 lbs
Input Voltage	120-277V AC
Operating Frequency	50-60Hz
Driver	Type: Constant Current, Class 2 120V: 0.19A 208V: 0.12A 240V: 0.1A 277V: 0.09A
Power Factor	98.6% at 120V 87.5% at 277V
THD	10.18% at 120V 10.27% at 277V
Operating Temperature	-40 to 104°F -40 to 40°C
L70 Lifespan	100,000 Hours
Dimmable	No
Wet Location Rated	Yes
DLC Listed	DLC Premium DLC Product Code: PQ5Q3JZN
IP66 Rating	Yes
UL Listed	Yes Suitable for Wet Locations. Covered Ceiling Mount Only.
Air Tight	Housing certified Air Tight as per ASTM E283
Warranty	5 Year
UPC	019813266251

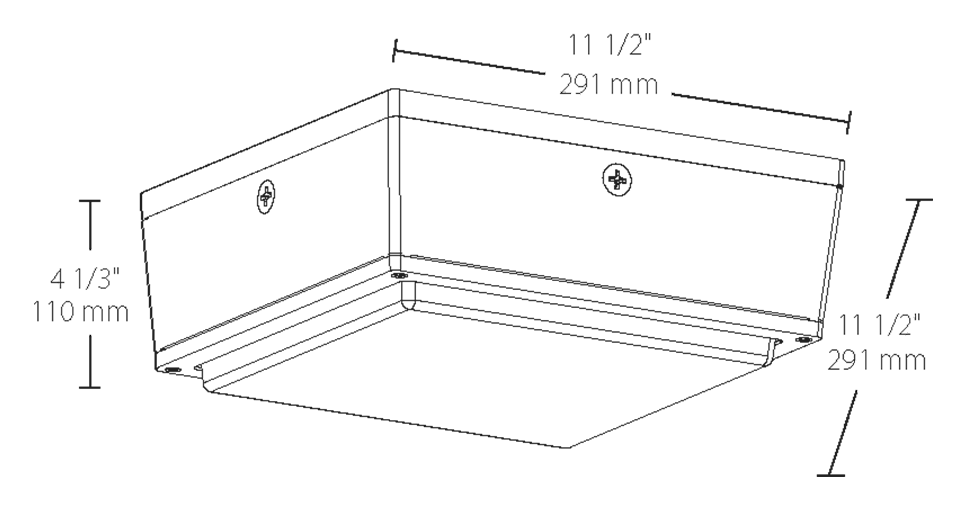

Dimensions

Spec Sheet: VANLED20Y Spec Sheet

Instructions: Installation Instructions
